UtocomIndustrial Vision
HotSmart Camera

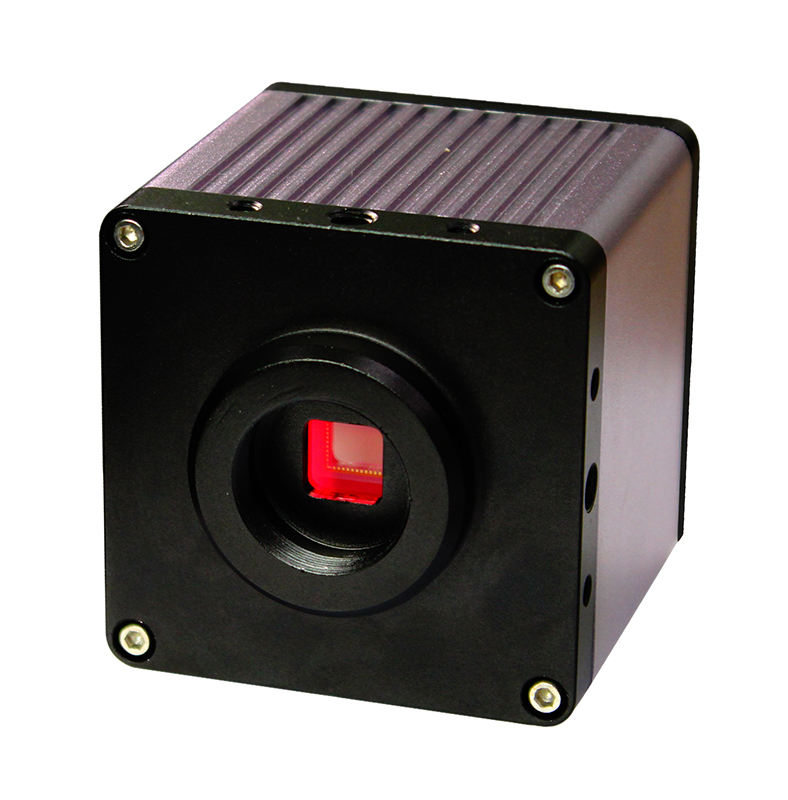

Smart Vision Inspection Camera
Model: SmartGO-570CPLC
4.9(328 reviews)
Price
Contact Us
In Stock
Resolution
1600 x 1200
Interface
HDMI
Shutter
Global Shutter
Frame Rate
60fps
Technical Specs
ModelSmartGO-570CPLC
Resolution1600 x 1200 x 24bit
ColorColor/Mono
Frame Rate60fps
Sensor Size1/1.8"
Pixel Size5.3 x 5.3 μm
Shutter TypeGlobal Shutter
Color AdjustmentR, G, B Independent Adjustment
View Full Specifications
Product Details

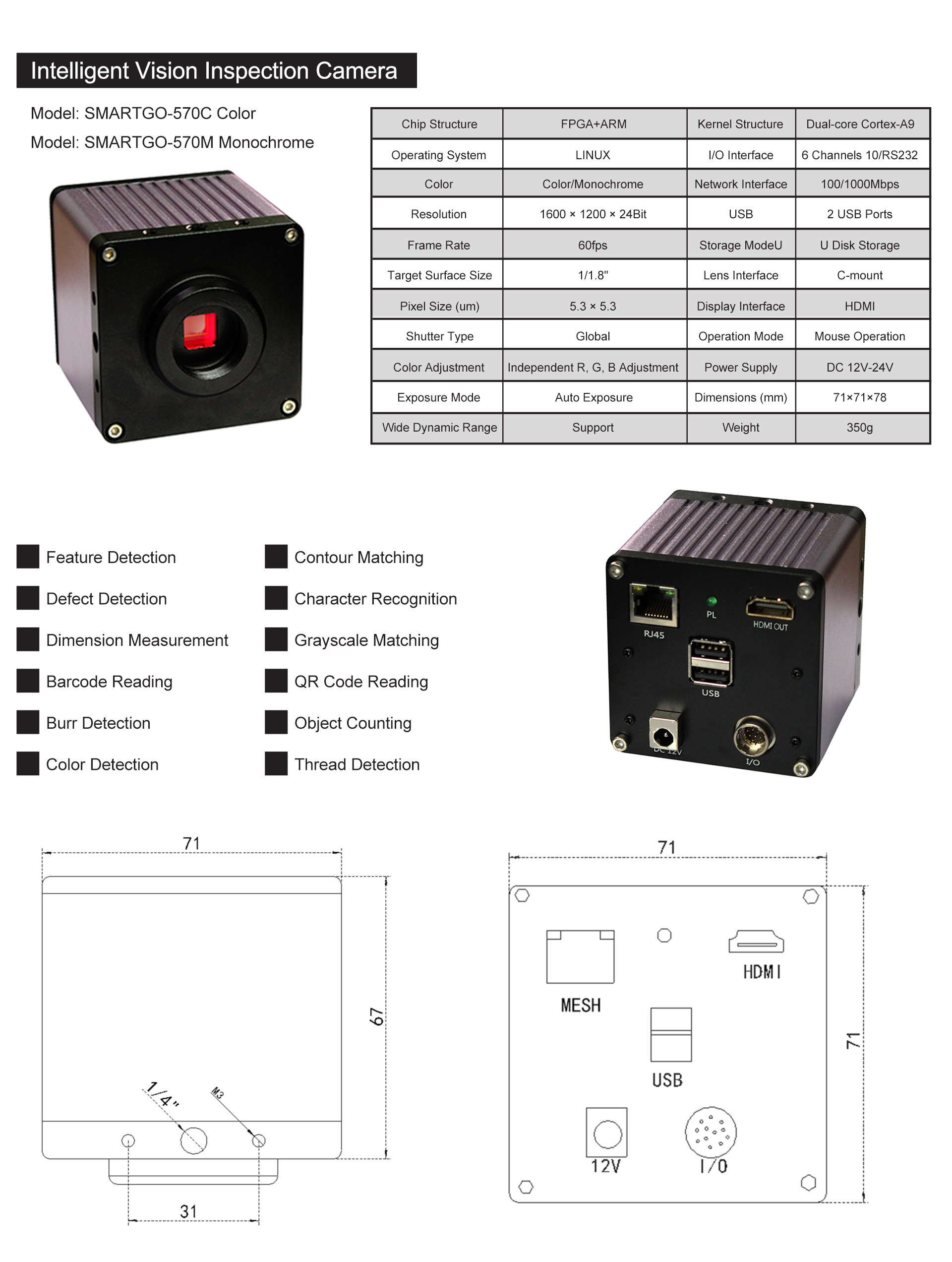

Full Specifications
ModelSmartGO-570CPLC
Resolution1600 x 1200 x 24bit
ColorColor/Mono
Frame Rate60fps
Sensor Size1/1.8"
Pixel Size5.3 x 5.3 μm
Shutter TypeGlobal Shutter
Color AdjustmentR, G, B Independent Adjustment
Exposure ModeAuto Exposure
WDRSupported
Chip ArchitectureFPGA+ARM
Operating SystemLINUX
Core ArchitectureDual-Core Cortex-A9
I/O Interface6 Groups IO/RS232
Network Interface100/1000Mbps
USB Interface2 USB Ports
Storage ModeUSB Flash Drive
Lens MountC-Mount
Display InterfaceHDMI
Operation ModeMouse Operation
Power SupplyDC 12V-24V

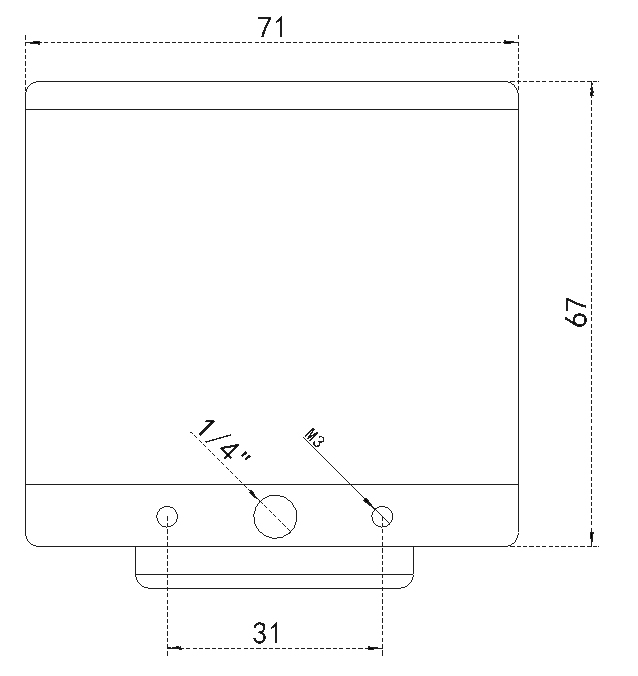

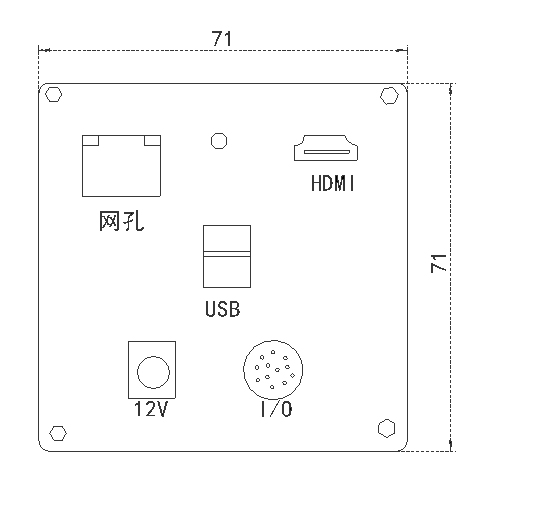

Dimensions71x71x78 mm
Weight350g

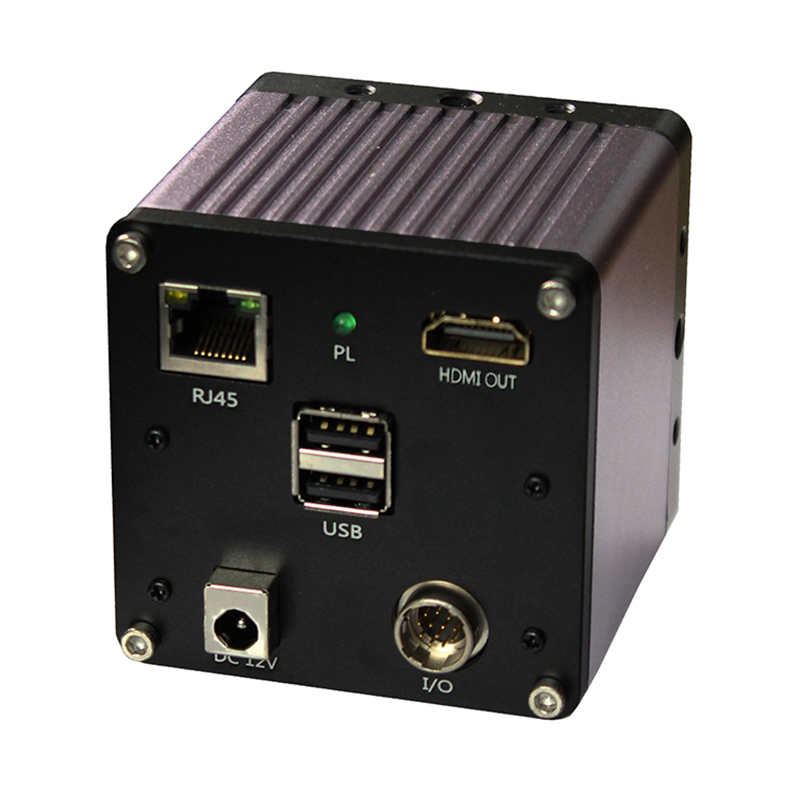

Product Features
1600 x 1200 High Resolution
HDMI HD Output
100/1000Mbps Network Interface
6 Groups IO/RS232 Interface
2 USB Ports, Support USB Flash Drive
FPGA+ARM Dual-Core Processing
LINUX Operating System
C-Mount Lens
SmartGO-570CPLC Smart Vision Inspection Camera, 1600x1200 resolution, supports HDMI output, network interface, USB storage, suitable for industrial inspection and machine vision applications.
Downloads
Product Datasheet (PDF)
2.4 MB
User Manual (PDF)
5.1 MB
SDK Package (ZIP)
156 MB
Driver (EXE)
45 MB
