HotHDMI Camera

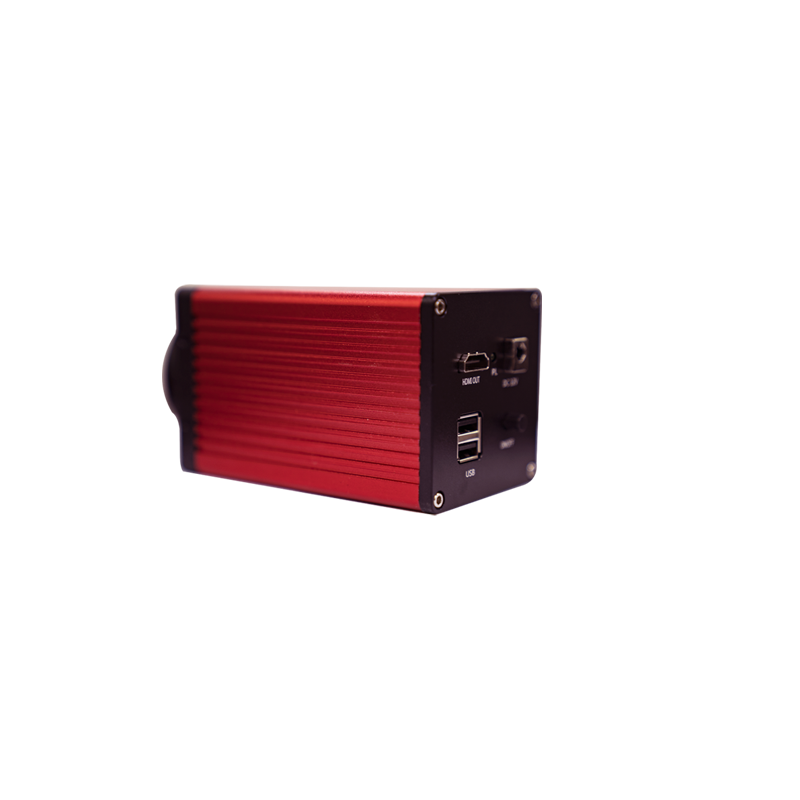

Large Field of View Auto Focus Camera
Model: 3500AF
4.9(156 reviews)
Price
Contact Us
In Stock
Resolution
1920 X 1080
Interface
HDMI
Shutter
Global Shutter
Frame Rate
60fps
Technical Specs
Model3500AF
Resolution1920 X 1080
Sensor Size1/3"
Optical Zoom14X (0.65X-3.3X)
Frame Rate60fps
Focus ModesFull Screen / Center / Spot
Min FOV310mm (0.65X)
Max FOV38mm (3.3X)
View Full Specifications
Product Details
Full Specifications
Model3500AF
Resolution1920 X 1080
Sensor Size1/3"
Optical Zoom14X (0.65X-3.3X)
Frame Rate60fps
Focus ModesFull Screen / Center / Spot
Min FOV310mm (0.65X)
Max FOV38mm (3.3X)
Chip ArchitectureHIS+ARM
Core ArchitectureDual-Core Cortex-A9
Operating SystemLinux 3.10
Main Frequency1GHz
Video InterfaceHDMI
StorageUSB Flash Drive
Video RecordingSupported
Working VoltageDC 12V
Working Temperature-10~70°C
Dimensions70x70x140 mm
Weight300g
Product Features
1920 X 1080 Full HD Resolution
Precision Optical Auto Focus System
3 Focus Modes: Full Screen/Center/Spot
14X Optical Zoom (0.65X-3.3X)
60fps High Frame Rate
Video Recording Function
USB Flash Drive Storage
HIS+ARM Dual-Core Architecture
Linux Operating System
Wide Field of View: 310mm-38mm

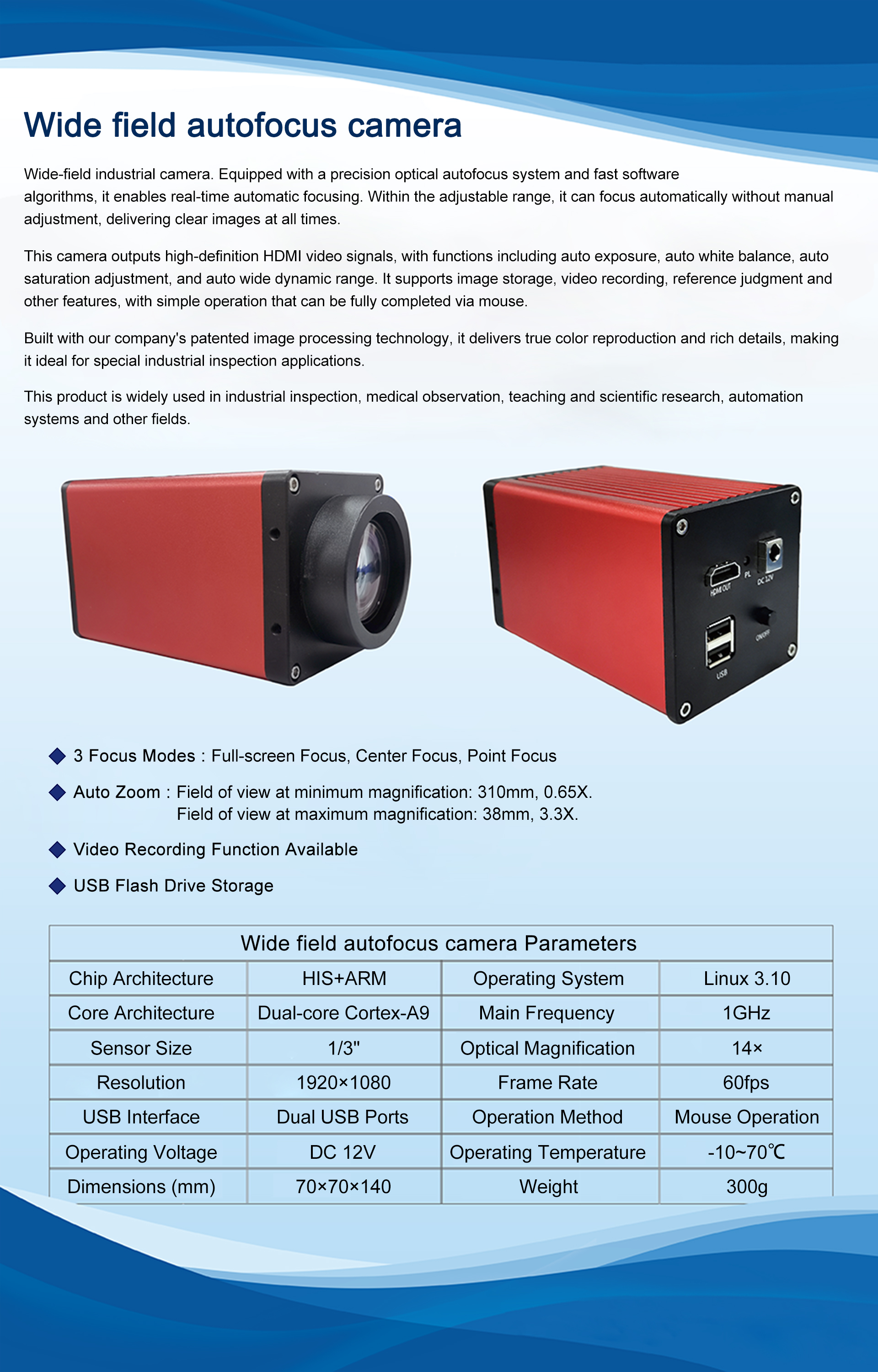

3500AF Large Field of View Auto Focus Industrial Camera, 1920x1080 resolution, precision optical auto focus system with fast software algorithm for real-time auto focus. Features 3 focus modes (full screen, center, spot), 14x optical zoom, video recording, and USB storage.
Downloads
Product Datasheet (PDF)
2.4 MB
User Manual (PDF)
5.1 MB
SDK Package (ZIP)
156 MB
Driver (EXE)
45 MB
