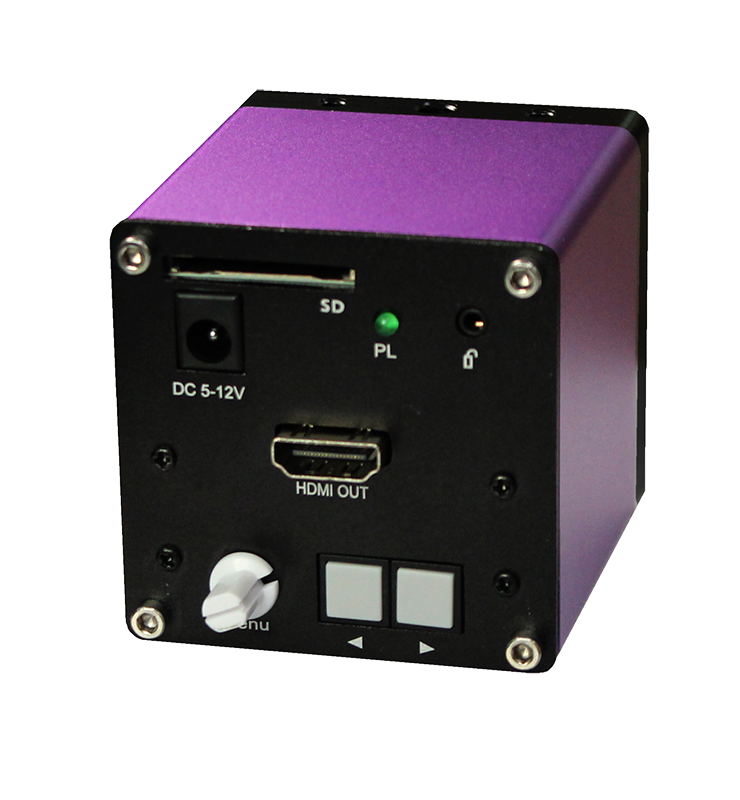

HDMI HD Camera
HDMI Camera

HDMI HD Camera

Model: UC-9185
4.8(128 reviews)
Price
Contact Us
In Stock
Resolution
1920 X 1080
Interface
HDMI
Shutter
Global Shutter
Frame Rate
Color

Technical Specs

ModelUC-9185 (SMART-3000)
Resolution1920 X 1080
Frame Rate60fps
Sensor Size1/2"
Pixel Size3.75μm × 3.75μm
Chip ArchitectureFPGA+ARM
Core ArchitectureDual-Core Cortex-A9
Operating SystemLinux 3.10
View Full Specifications

Product Details

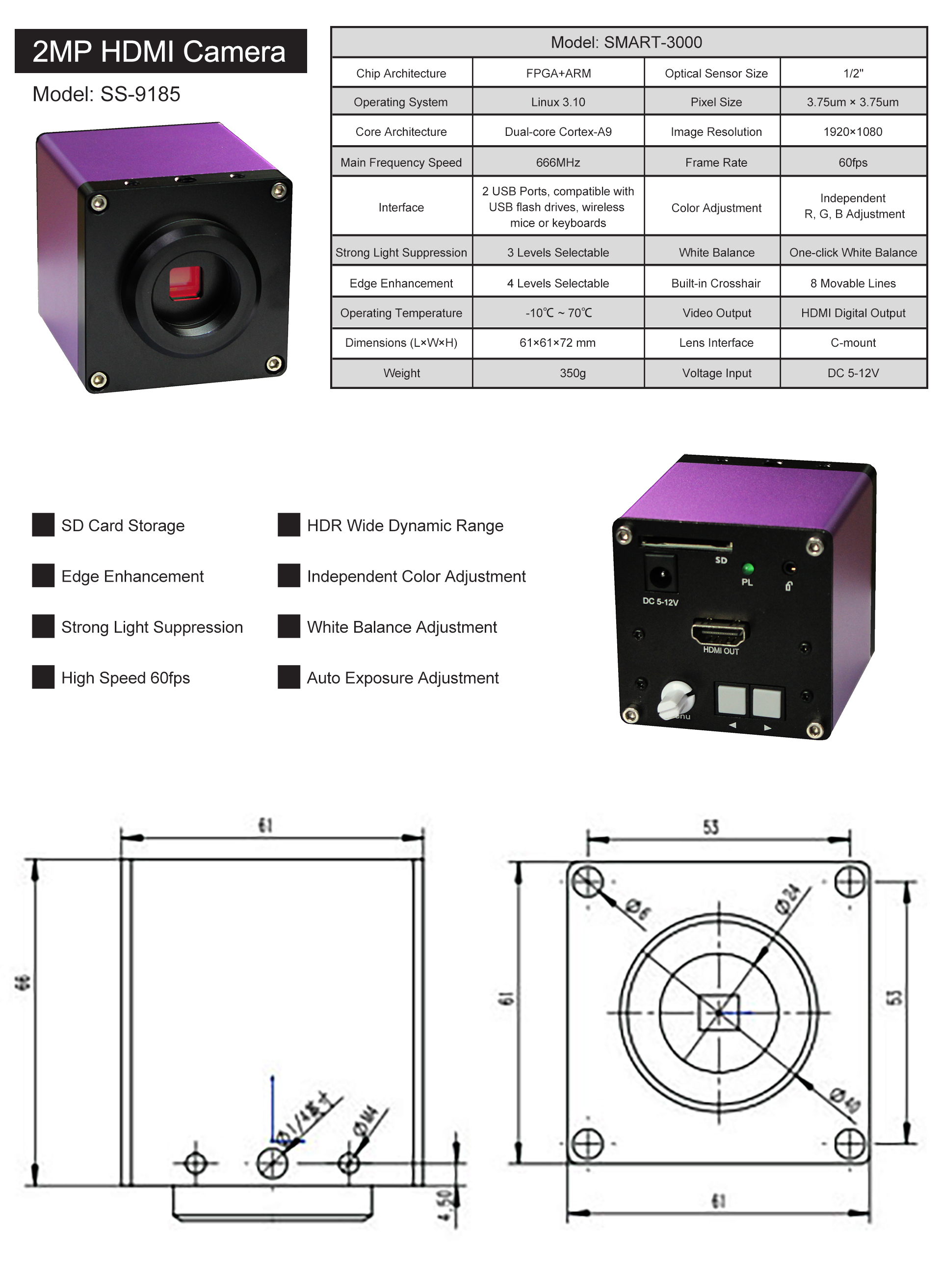

HDMI HD Camera - Product Details

Full Specifications

ModelUC-9185 (SMART-3000)
Resolution1920 X 1080
Frame Rate60fps
Sensor Size1/2"
Pixel Size3.75μm × 3.75μm
Chip ArchitectureFPGA+ARM
Core ArchitectureDual-Core Cortex-A9
Operating SystemLinux 3.10
Main Frequency666MHz
Video InterfaceHDMI
USB Interface2 USB Ports
StorageSD Card
Lens MountC-Mount
Working VoltageDC 5-12V
Working Temperature-10℃ ~ 70℃
Dimensions61×61×72 mm
Weight350g

Product Features

1920 X 1080 Full HD Resolution
60fps High Frame Rate
FPGA+ARM Dual-Core Architecture
Linux 3.10 Operating System
SD Card Storage Support
Edge Enhancement
HDR Wide Dynamic Range
Independent Color Adjustment
White Balance Adjustment
Auto Exposure Adjustment

UC-9185 2MP HDMI Industrial Camera, 1920x1080 resolution, 60fps high frame rate, FPGA+ARM dual-core architecture, supports SD card storage, edge enhancement, HDR wide dynamic range, and independent color adjustment.

Downloads

Product Datasheet (PDF)
2.4 MB
User Manual (PDF)
5.1 MB
SDK Package (ZIP)
156 MB
Driver (EXE)
45 MB
